Name: High-Performance 1D 2D Barcode Scan Engine with 3.5g Weight and Compact 22mm L * 14.6mm W * 11.3mm H Dimension
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 5 USD
Availability: InStock

خانه محصولات بارکد اسکن موتور

High-Performance 1D 2D Barcode Scan Engine with 3.5g Weight and Compact 22mm L * 14.6mm W * 11.3mm H Dimension

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	5

مخاطب

توضیحات محصول جزئیات

شماره مدل:	DE2106	نوع رابط:	USB
سرعت اسکن:	25 سانتی متر بر ثانیه	عنصر اسکن:	CMOS
قطعنامه:	4 مایل	حسگر تصویر:	640*480
حالت اسکن:	اسکن خودکار، پیوسته	کنتراست چاپ:	25 ٪
ارتباط:	USB (USB-Kbw، USB-COM)، Ttl	وزن:	3.5 گرم
بعد:	22 میلی متر طول * 14.6 میلی متر عرض * 11.3 میلی متر ارتفاع	CPU:	32 بیتی
منبع تغذیه:	DC 3.3 ولت، 150 میلی آمپر (کار)	دما:	-20 درجه سانتیگراد تا 50 درجه سانتیگراد
ارتفاع قطره:	1.2M
برجسته کردن:	1D 2D Barcode Scan Engine,3.5g Weight Barcode Scanner Module,22mm L * 14.6mm W * 11.3mm H Embedded Barcode Scanner , 3.5g Weight Barcode Scanner Module , 22mm L * 14.6mm W * 11.3mm H Embedded Barcode Scanner

High-Performance 1D/2D Barcode Scanner Embedded CMOS Barcode Scanning Engine Module

The DE2106 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and intelligent image processing system. This versatile module supports both 1D and 2D barcode scanning across various media including paper, products, and digital screens.

With multiple interface options (USB, TTL), this module is designed for easy integration into OEM products such as handheld devices, portable equipment, fixed terminals, and barcode collection systems.

Key Features

Compact size ideal for wireless machines and self-service terminals
Reads all mainstream 1D and 2D barcodes (minimum 4mil resolution)
High-brightness scanning capability for low-light environments
Low power consumption design
Multiple interface options: USB and TTL
Supports multiple operating systems and languages for secondary development

Technical Specifications

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640×480
Reading Precision	≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	25CM/S
Scan View	36°×28°
Scan Modes	Manual, Auto sense, Continuous
Scan Angles	Pitch: ±50°, Roll: ±360°, Skew: ±50°
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA25), Codabar (NW-7) 2D: QR Code, Micro QR Code, Data Matrix, PDF417

Weight	<3.5 g

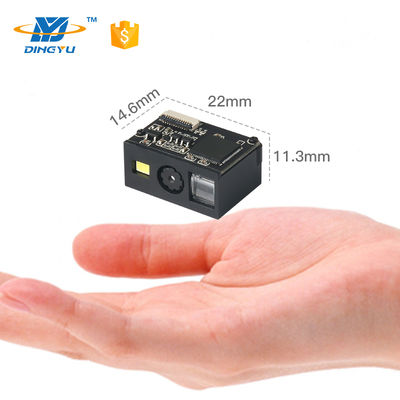

Dimensions	22mm (L) × 14.6mm (W) × 11.3mm (H)
Communication	USB (USB-KBW, USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V, 150mA (Work)

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes at 60ºC high temp, 30 minutes at -40ºC low temp
Transport Test	10H@125RPM
