Name: Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 25 USD
Availability: InStock

خانه محصولات بارکد اسکن موتور

Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	25

مخاطب

توضیحات محصول جزئیات

شماره مدل:	DE2690D	نوع رابط:	USB
سرعت اسکن:	65 سانتی متر بر ثانیه	عنصر اسکن:	CMOS
دقت خواندن:	3mil/0.076mm	حسگر تصویر:	1280*480
کنتراست چاپ:	15 ٪	بعد:	28.3mm L* 19.1mm W * 12.0mm H
دمای ذخیره سازی:	-40 ℃ تا 70	کابل ffc:	5 سانتی متر
ارتفاع قطره:	1.2M	وزن:	5.5 گرم
عمق میدان:	70-750 میلی متر	دمای عملیاتی:	-20 درجه سانتیگراد تا 55 درجه سانتیگراد
رطوبت:	5% تا 95%
برجسته کردن:	65cm/S Scan Speed Barcode Scan Engine,3mil/0.076mm Reading Precision 2D Barcode Scanner Module,1280480 Image Sensor Embedded Barcode Reader , 3mil/0.076mm Reading Precision 2D Barcode Scanner Module , 1280480 Image Sensor Embedded Barcode Reader

Cost-Effective Embedded 2D CMOS Image Reader Module with Megapixel Camera

OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module

A compact, high-performance embedded scanning solution for ID cards, passports, and barcode reading applications.

Product Specifications

Parameter	Details
Weight	5.5g (without cable)
Dimensions	28.3mm L × 19.1mm W × 12.0mm H
Interface	USB, USB-com (requires driver), TTL (USB protocol: Full Speed, USB 2.0)
Light Source	White LED (auto-brightness adjustment) Red aiming LED (525nm wavelength)
CMOS Sensor	1280×800 resolution
CPU	ARM 32-bit processor
Resolution	1D: ≥3mil
Depth of Field	70-750mm (varies by barcode type)
Scan Modes	Manual, Auto, Continuous, Command control
Power Requirements	3.3V, 220mA (operating), 120mA (standby), 40mA (sleep)
Operating Temperature	-20°C to 55°C

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more
2D Codes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more

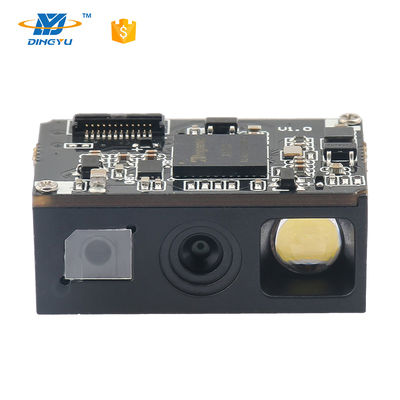

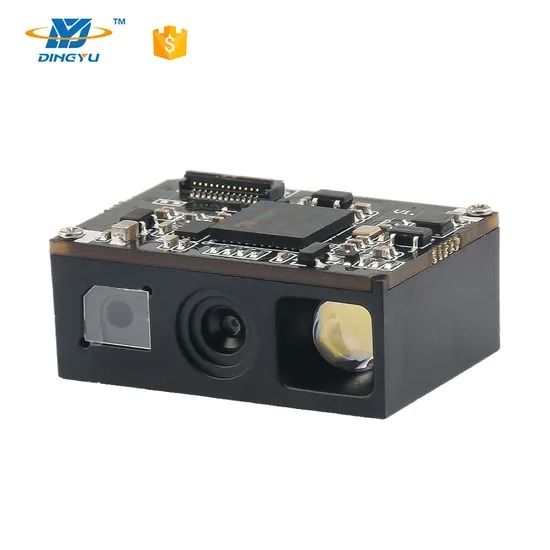

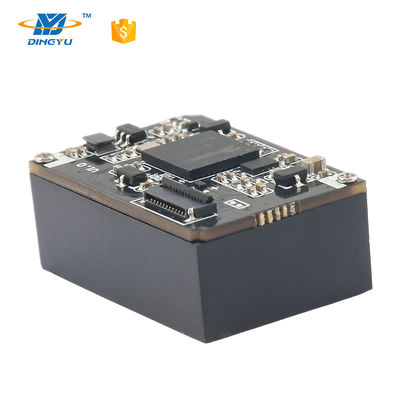

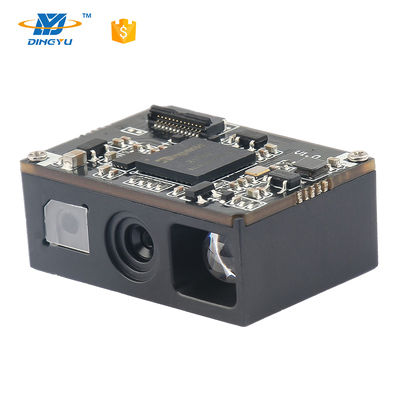

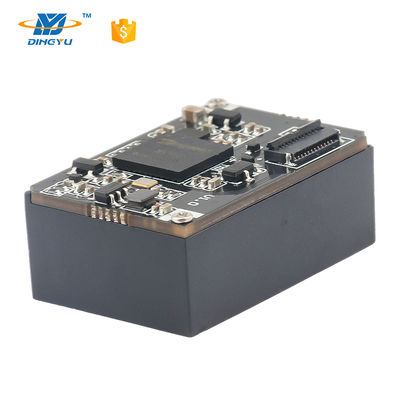

Additional Product Views
