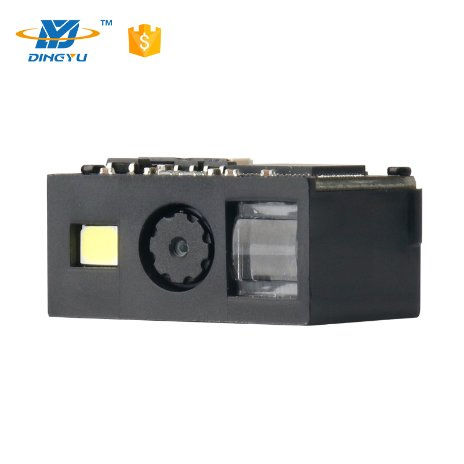

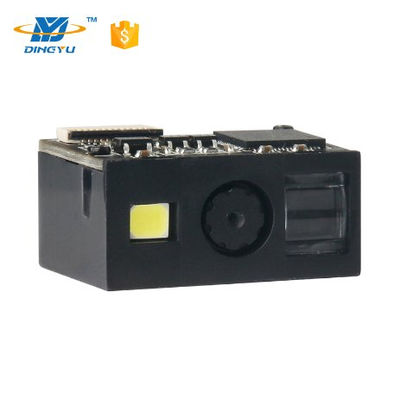

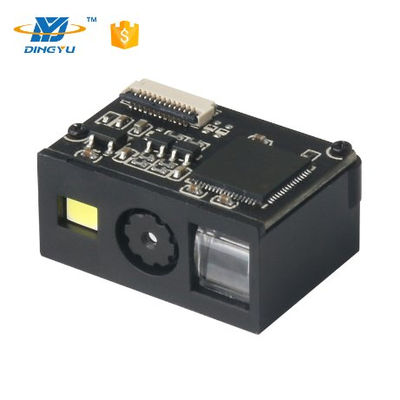

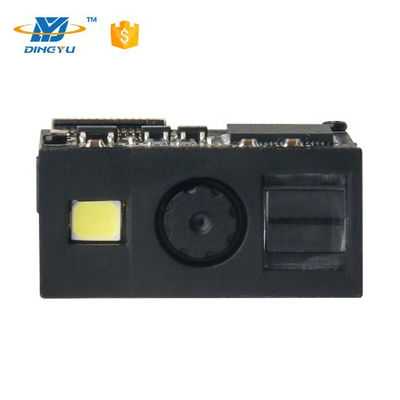

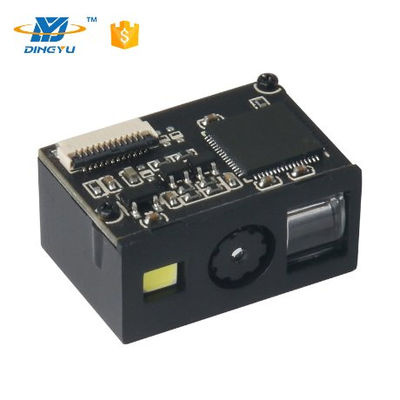

High-Performance 1D 2D Dimensional CMOS Barcode Scan Engine with 36°*28° Scan View and Mini Size

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	5

مخاطب

توضیحات محصول جزئیات

شماره مدل:	DE2106	نوع رابط:	USB، TTL
سرعت اسکن:	25 سانتی متر بر ثانیه	عنصر اسکن:	CMOS
قطعنامه:	4 مایل	حسگر تصویر:	640*480
حالت اسکن:	اسکن خودکار، پیوسته	کنتراست چاپ:	25 ٪
دمای عملیاتی:	-20 ℃ تا 50	دمای ذخیره سازی:	-40 تا 60 درجه سانتیگراد
نمایش اسکن:	36°*28°	کابل ffc:	5 سانتی متر
ارتفاع قطره:	1.2M	ابعاد:	22 میلی متر طول * 14.6 میلی متر عرض * 11.3 میلی متر ارتفاع
منبع تغذیه:	DC 3.3 ولت، 150 میلی آمپر (کار)
برجسته کردن:	1D Dimensional Barcode Scan Engine,2D Dimensional Barcode Scanner Module,36°28° Scan View Embedded Barcode Scanner , 2D Dimensional Barcode Scanner Module , 36°28° Scan View Embedded Barcode Scanner

High-Performance 1D/2D Dimensional CMOS Bar Code Scanning Engine Module

Product Overview

The DE2106 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and intelligent image processing system. This versatile module supports both 1D and 2D barcode scanning across various media including paper, products, and digital screens.

Key Features

Compact design ideal for integration into wireless devices and self-service terminals
Reads all mainstream 1D and 2D barcodes (minimum 4mil resolution)
High-brightness scanning capability for low-light environments
Low power consumption design
Multiple interface options: USB and TTL
Supports multiple operating systems and programming languages for secondary development

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640×480
Reading Precision	≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	25CM/S
Scan View	36°×28°
Scan Modes	Manual, Auto sense, Continuous
Scan Angles	Pitch: ±50°, Roll: ±360°, Skew: ±50°
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA25), Codabar (NW-7), etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, etc.

Physical Specifications

Weight:

<3.5 g

Dimensions:

22mm (L) × 14.6mm (W) × 11.3mm (H)

Interface:

FFC 12PIN Pitch 0.5

Power Supply:

DC 3.3V, 150mA (Work)

Environmental Specifications

Parameter	Specification
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes at 60°C (high), 30 minutes at -40°C (low)
Transport Vibration	10H@125RPM
