Name: Super Mini 2D Barcode Scanner Module with 640*480 Resolution and 25cm/S Scan Speed for 1D and 2D Code Support
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

خانه محصولات بارکد اسکن موتور

Super Mini 2D Barcode Scanner Module with 640*480 Resolution and 25cm/S Scan Speed for 1D and 2D Code Support

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	10

مخاطب

توضیحات محصول جزئیات

شماره مدل:	DE2120	نوع رابط:	USB
سرعت اسکن:	25 سانتی متر بر ثانیه	عنصر اسکن:	CMOS
حسگر تصویر:	640*480	حالت اسکن:	اسکن خودکار، پیوسته
کنتراست چاپ:	25 ٪	منبع تغذیه:	DC 3.3 ولت، 160 میلی آمپر کار
رابط:	USB، TTL	کابل ffc:	5 سانتی متر
ارتفاع قطره:	1.2M	ابعاد:	21.2mm16.0mm12.0mm
وزن:	<4 گرم	دمای عملیاتی:	-20 درجه سانتیگراد تا 50 درجه سانتیگراد
دمای ذخیره سازی:	-40 درجه سانتیگراد تا 70 درجه سانتیگراد
برجسته کردن:	640*480 Resolution 2D Barcode Scanner Module,25cm/S Scan Speed Barcode Scan Engine,1D and 2D Code Support Embedded Barcode Scanner , 25cm/S Scan Speed Barcode Scan Engine , 1D and 2D Code Support Embedded Barcode Scanner

Super Mini 2D Barcode Scanner Module with Type C Interface Phone Mate Barcode Scanner

The DE2120 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and an intelligent image recognition system. This versatile scanner supports universal 1D and 2D barcodes across various media including paper, goods, and digital screens.

Key Features

Supports USB and TTL interfaces for flexible integration
Compact design ideal for OEM products including handheld devices and barcode collectors
High-performance scanning of both 1D and 2D barcodes
Multiple scanning modes including manual, continuous, and auto-sense

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 625±10nm (aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading Precision	≥4mil/0.1mm (PCS90%, Code 39)
Decoding Speed	25CM/S
Depth of Field	25mm-400mm
Scan Angle	Pitch: ±45° \| Roll: ±360° \| Skew: ±40°
Weight	<4g
Dimensions	21.2mm × 16.0mm × 12.0mm (L×W×H)

Environmental Specifications

Operating Temperature: -20ºC to 50ºC

Storage Temperature: -40ºC to 70ºC

Humidity: 5% to 95% (non-condensing)

Drop Height: 1.2m

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar (NW-7), MSI Plessey, GS1 Databar (RSS), China Post

2D Codes: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec

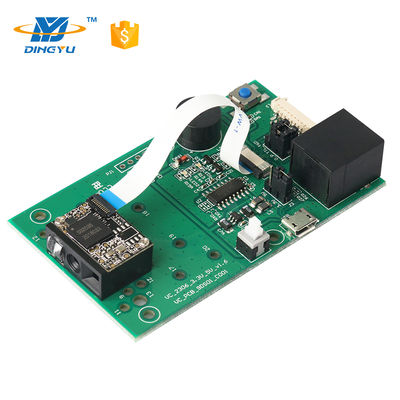

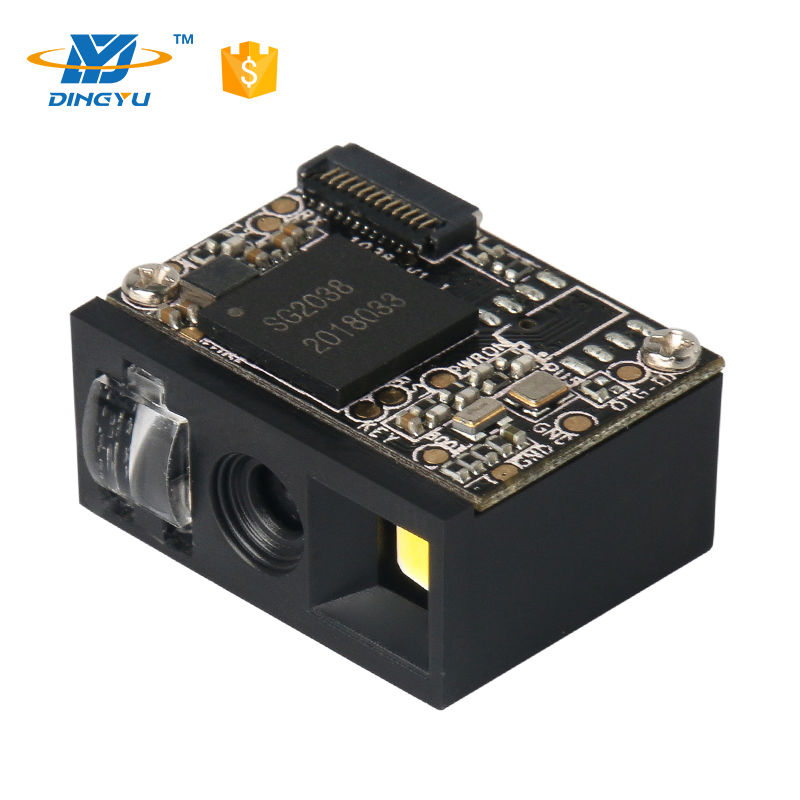

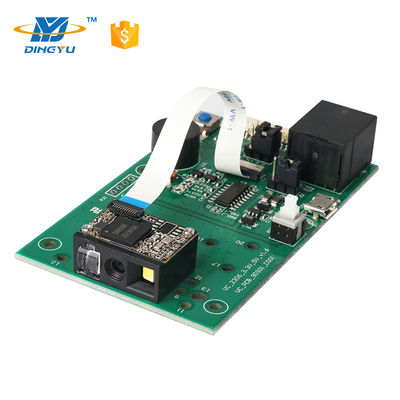

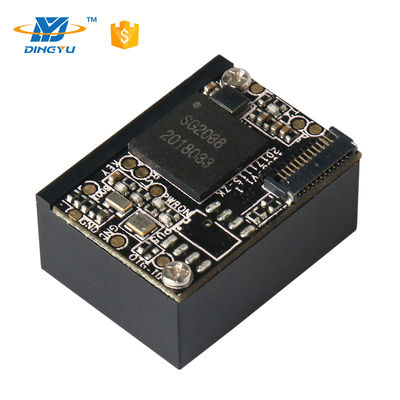

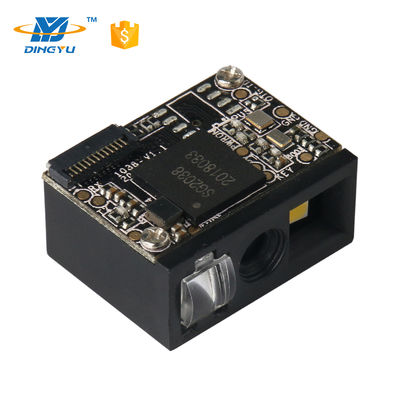

Product Images
