Name: 1D 2D Barcode Scanner Module with DC 3.3V Power and 160mA Current for Fixed QR Code Reading
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

خانه محصولات بارکد اسکن موتور

1D 2D Barcode Scanner Module with DC 3.3V Power and 160mA Current for Fixed QR Code Reading

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	10

مخاطب

توضیحات محصول جزئیات

شماره مدل:	DE2120	نوع رابط:	USB
سرعت اسکن:	25 سانتی متر بر ثانیه	عنصر اسکن:	CMOS
قطعنامه:	4 مایل	حسگر تصویر:	640*480
حالت اسکن:	اسکن خودکار، پیوسته	کنتراست چاپ:	25 ٪
منبع تغذیه:	DC 3.3 ولت، 160 میلی آمپر کار	کابل ffc:	5 سانتی متر
ارتفاع قطره:	1.2M	ابعاد:	21.2mm16.0mm12.0mm
منبع نور:	چراغ قرمز 625±10 نانومتر (هدف)، 5600K LED (نورپردازی)	CPU:	32 بیتی
وزن:	<4 گرم
برجسته کردن:	1D 2D Barcode Scanner Module,DC 3.3V Barcode Scan Engine,160mA QR Code Reader Module , DC 3.3V Barcode Scan Engine , 160mA QR Code Reader Module

1D 2D Cheap QR Code Fixed Barcode Scanner CMOS Reader Module

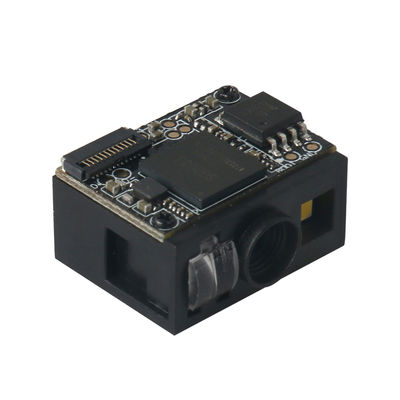

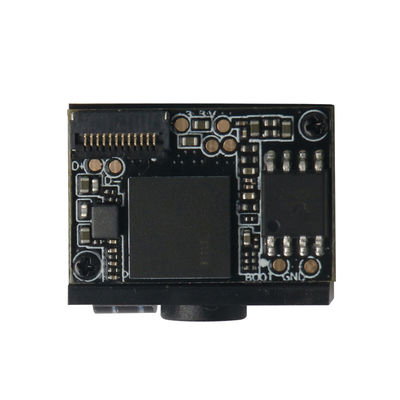

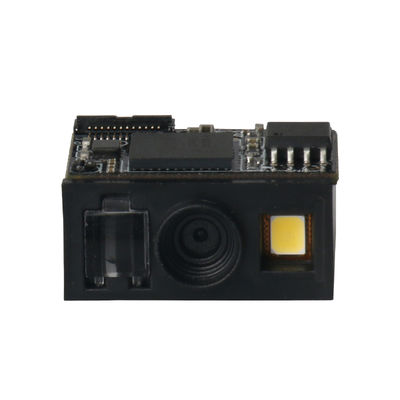

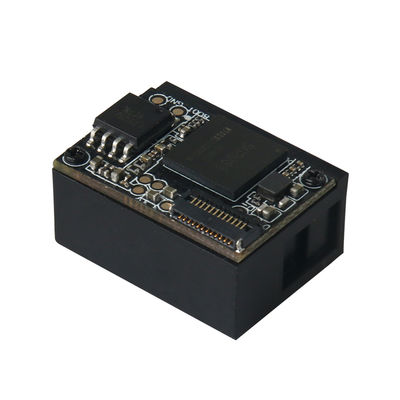

The DE2120 is a practical embedded barcode scanner module featuring advanced CMOS image recognition technology and an intelligent image recognition system. Capable of scanning universal 1D and 2D codes, it supports multiple interfaces including USB and TTL, and can read barcodes from paper, goods, screens, and other media. Easily integrated into various OEM products including handheld devices, portable equipment, fixed installations, and barcode collectors.

Key Features

Advanced CMOS image recognition technology
Supports both 1D and 2D barcode scanning
Multiple interface options (USB, TTL)
Compact and lightweight design
Wide scanning angle and depth of field
Robust construction for industrial environments

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed	25CM/S
Depth of field	25mm-400mm
Scan Mode	Manual, Continuous, Auto Sense, command control
Scan angle	Pitch:±45°, Roll: ±360°, Skew: ±40°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Weight	<4g
Dimensions	21.2mm(L) × 16.0mm(W) × 12.0mm(H)
Communication Mode	USB(USB-KBW,USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V @160mA(Work)

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar(NW-7), MSI Plessey, GS1 Databar(RSS), China Post

2D Codes: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec

Environmental Specifications

Parameter	Specification
Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes for high Temp. (60ºC), 30 minutes for low Temp. (-20ºC)
Transport vibration Test	10H@125RPM
