DS6530-1D High-Performance 1D Barcode Scanner
Product Overview
The DS6530-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliability and efficiency, it effortlessly reads barcodes from various surfaces including paper, products, and digital screens.
Key Features
- Ergonomic design for comfortable extended use
- Comprehensive compatibility with all mainstream 1D barcodes
- High-speed decoding with 300 scans per second capability
- Multi-language and system support
- Dual interface options: USB and RS232
- Versatile scanning modes: manual, continuous, auto-sense, and flashing
- Multiple feedback options: buzzer, LED, and vibration
Applications
Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.
Technical Specifications
Performance Parameters
| Communication |
USB |
| Scan Type |
Linear CCD Sensor |
| Resolution |
2500 (≥3mil/0.076mm at PCS90%, CODE 39) |
| Depth of Field |
30mm~700mm |
| Decoding Speed |
300 times/second |
| Scan Modes |
Manual, continuous, auto-sense, flashing |
| Scan Angles |
Roll: ±30°, Pitch: ±60°, Skew: ±60° |
| Supported Symbologies |
UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, and more |
Physical Parameters
| Weight |
Approximately 230g (scanner only) |
| Dimensions |
152mm (L) × 66mm (W) × 95mm (H) |
| Communication Modes |
USB, RS232 |
| Interface Type |
USB, DB9 |
| Power Supply |
DC 5V@80mA (operational) |
Environmental Specifications
| Operating Temperature |
-20°C to 50°C |
| Storage Temperature |
-40°C to 60°C |
| Humidity |
5% to 95% (non-condensing) |
| Transport Vibration Test |
10H@125RPM |
Included Accessories
- USB Cable for host device connection
- RS232 Cable with USB power supply

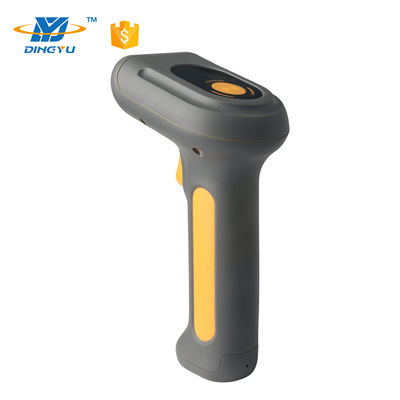

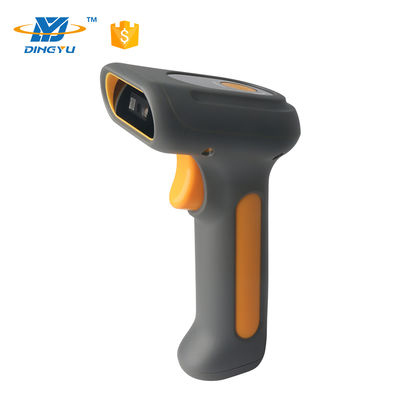

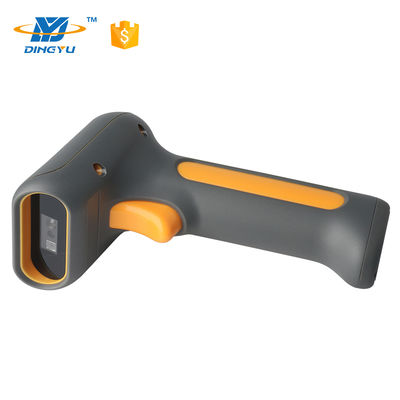

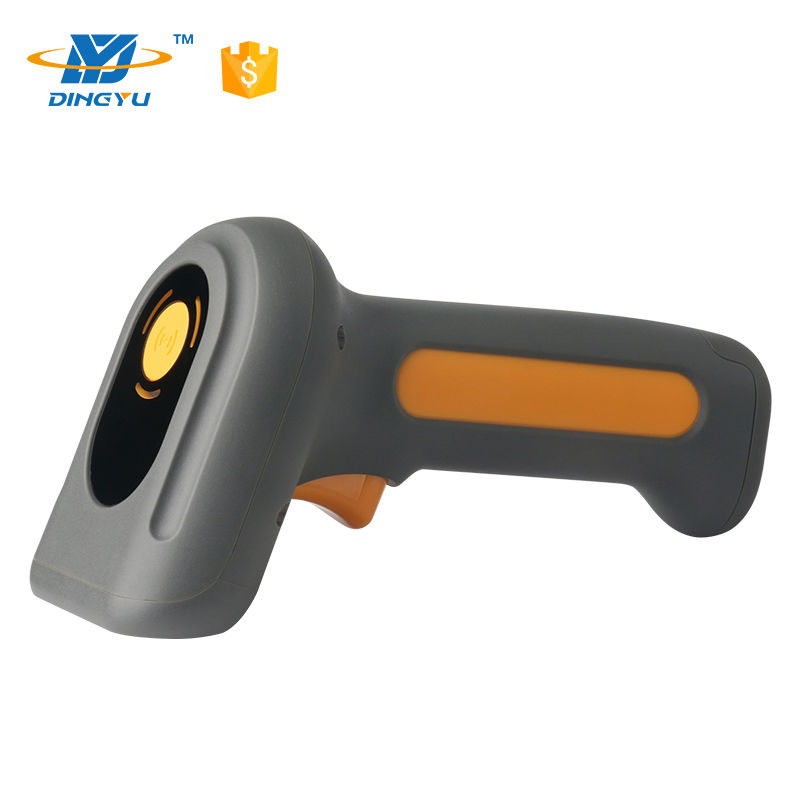

Product Images
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. Our products undergo rigorous testing including engine age tests, wire bend tests, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.
Q2: What is your quality control process?
We conduct extensive testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough inspection before shipment.
Q3: What is the warranty period?
All our barcode scanners come with a 12-month warranty.
Q4: How do you maintain stable performance?
We implement assembly line production with multiple quality checks. Each product is tested at least four times before delivery.
Q5: Do you offer OEM/ODM services?
Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development projects.
Q6: What are your company's strengths?
We have specialized departments for R&D, production, and sales, each led by experienced directors. This structure ensures professional product development and excellent customer service.
Q7: Are drivers required for operation?
No, our scanners support plug-and-play functionality across multiple operating systems including Windows, Mac OS, iOS, Linux, UNIX, and Android.
