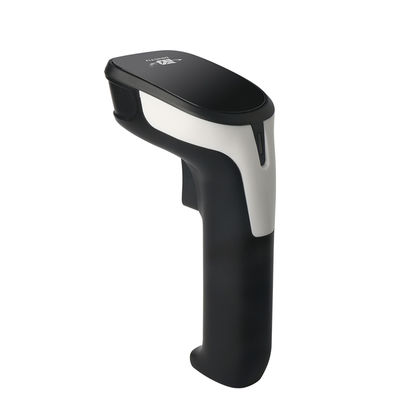

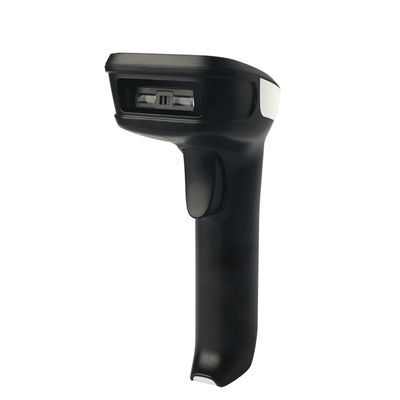

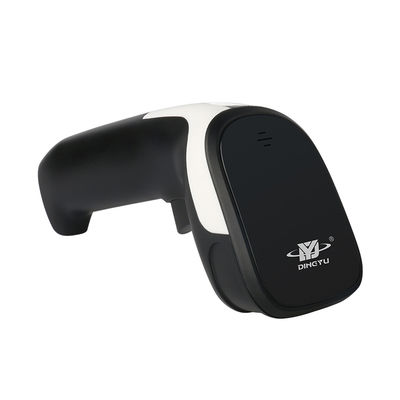

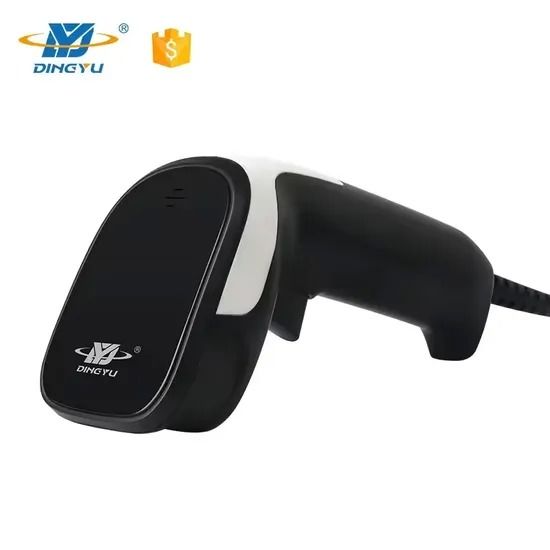

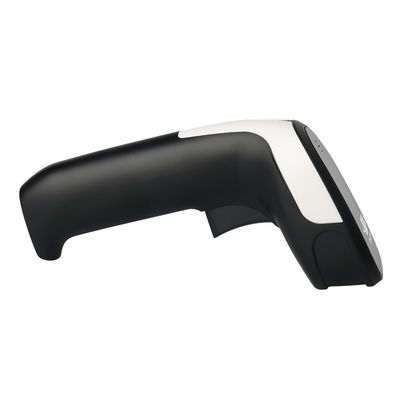

Name: DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

خانه محصولات اسکنر بارکد 1D

DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	10

مخاطب

توضیحات محصول جزئیات

مدل شماره.:	DS5110	نوع رابط:	USB، RS232
عنصر اسکن:	CCD	وضوح دوربین:	640*480
وضوح بارکد:	3mil کد 39	عمق میدان:	10-600 میلی متر
حالت های اسکن:	دستی ، مداوم ، اسکن خودکار ، چشمک زن	کنتراست چاپ:	20 ٪
CPU:	32 بیتی	ابعاد:	L161mm * W63mm * H80mm
وزن:	147 گرم	ارتباط:	USB (USB-KBW، USB-COM)، RS232
دمای عملیاتی:	-20 تا 50 درجه	دمای ذخیره سازی:	-40 تا 70 درجه
ارتفاع قطره:	1.5 متر
برجسته کردن:	1D CCD barcode scanner with USB,1D barcode scanner RS232 interface,DS5110 barcode scanner 3mil resolution , 1D barcode scanner RS232 interface , DS5110 barcode scanner 3mil resolution

Handheld 1D Wired Scanner Barcode Reader CCD Barcode Scanner with USB RS232

High-Performance 1D Barcode Scanner

The DS5110 is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliable performance across various applications, it efficiently reads barcodes from paper, products, screens, and other media surfaces.

Key Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory systems.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Resistance	1.5m
