Name: DS5600 1D CCD Barcode Scanner 300 Scans/Sec USB 32-Bit
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

خانه محصولات اسکنر بارکد 1D

DS5600 1D CCD Barcode Scanner 300 Scans/Sec USB 32-Bit

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1

مخاطب

توضیحات محصول جزئیات

مدل شماره.:	DS5600	نوع رابط:	USB
سرعت اسکن:	300 اسکن در ثانیه	عنصر اسکن:	CMOS
نوع اسکن:	CCD خطی	CPU:	32 بیتی
وضوح:	2500	دقت خواندن:	3mil/0.076mm
سرعت رمزگشایی:	300 بار در ثانیه	عمق میدان:	10mm-600mm
کنتراست چاپ:	20 ٪	وزن:	110 گرم
بعد:	l180mm * w60mm * h80mm	منبع تغذیه:	DC 5V@80mA (کار)
دمای عملیاتی:	-20 درجه سانتیگراد تا 50 درجه سانتیگراد
برجسته کردن:	1D barcode scanner with USB,CCD barcode scanner 300 scans/sec,DS5600 barcode scanner 32-bit , CCD barcode scanner 300 scans/sec , DS5600 barcode scanner 32-bit

Factory Direct 1D CCD Wireless Bluetooth Handheld Barcode Scanner

30 Meter Transmission Distance

The DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, and food traceability applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with ease
High-performance processor enables fast decoding (3mil resolution)
Supports multiple languages and operating systems
USB interface for universal connectivity
Versatile applications in supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding speed	300 times/second
Depth of field	20mm~680mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing, control command
Prompt method	LED indicator, buzzer
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

Physical Parameters

Weight	≈160.8g (without cable)
Dimensions	L68.4mm × W170.6mm × H87.6mm
Communication Modes	USB, USB-COM
Power Supply	DC 5V@80mA (work)

Environmental Specifications

Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)

Included Accessories

USB Cable for connecting to host devices
RS232 Cable with USB supply cable

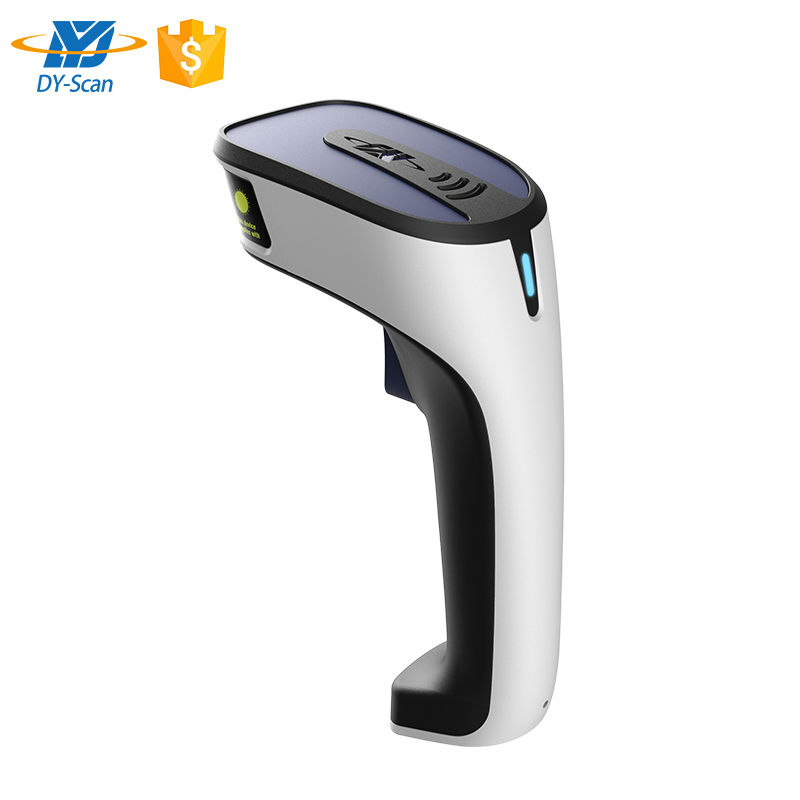

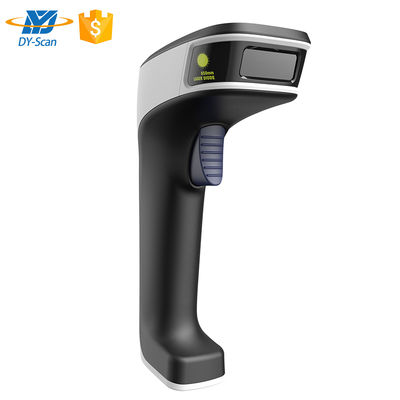

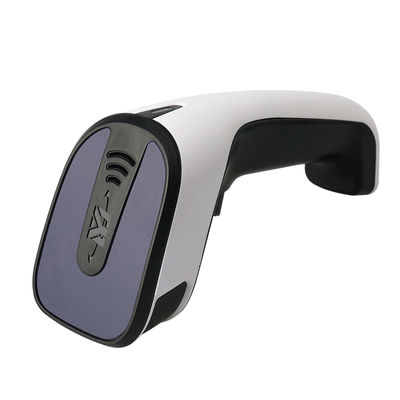

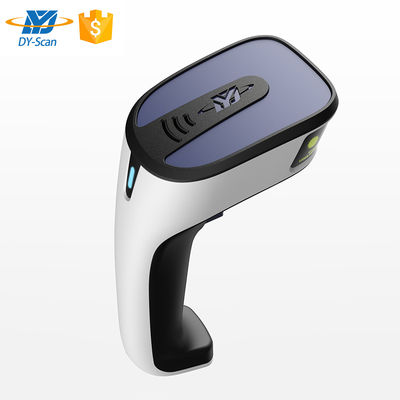

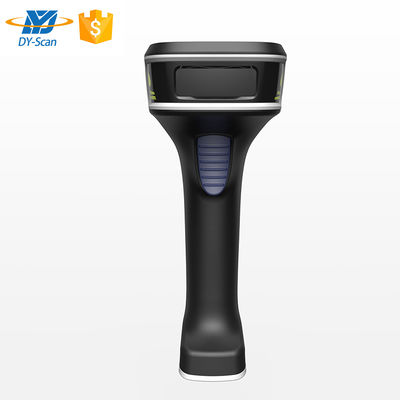

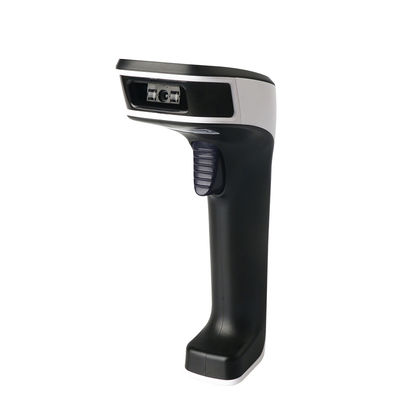

Product Images

Applications

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan: As professional manufacturers with 18 years of experience, we maintain strict quality control with professional testing equipment (engine age test, wire bend machine, switch life test, shock resistance test). All scanners are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

DYscan: We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device is thoroughly tested before shipment.

Q3: What is the warranty period?

DYscan: 12 months warranty.

Q4: How do you maintain stable performance?

DYscan: Our assembly line production ensures consistency, with each product tested at least 4 times before delivery.

Q5: Do you offer OEM/ODM services?

DYscan: Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development.

Q6: What are your company strengths?

DYscan: We have specialized departments for R&D, production, testing, marketing, and customer service to ensure comprehensive support.

Q7: Are drivers required?

DYscan: No drivers needed - our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
