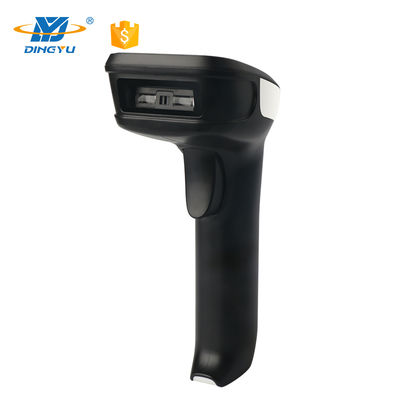

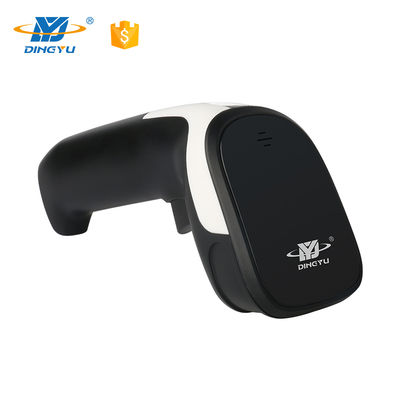

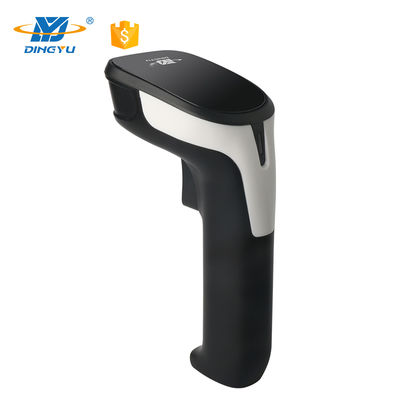

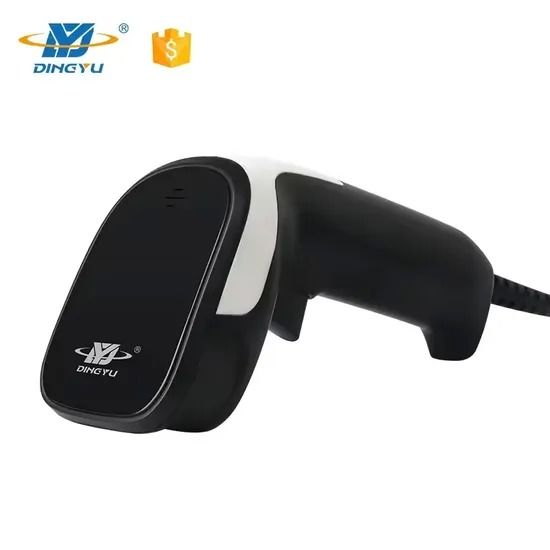

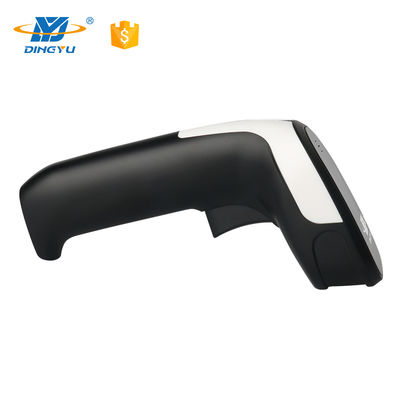

1D CCD Barcode QR Code Scanner Handheld Wireless Retail Barcode Scanner
DS5110 is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read barcodes on paper, goods, screens and other media. Widely used in manufacturing, warehouse, logistics, healthcare, retail chains, mobile payment, express delivery, inventory management, food traceability, and asset inventory.
Product Parameters
| Scan Type |
Linear CCD |
| Light Source |
Visible red light, 625±10nm |
| CPU |
32-bit |
| Resolution |
2500 |
| Reading precision |
≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed |
300times/s |
| Depth of field |
10mm-600mm |
| Scan Mode |
Manual, Continuous, Auto Sense, Flashing |
| Scan angle |
Test Conditions: CODE39,10mil/0.25mm,PCS90%
Pitch: ±60°
Roll: ±30°
Skew: ±60°
|
| Print Contrast Signal |
≥20% |
| Ambient Light |
Dark environment, indoor natural light |
| Symbologies |
UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc. |
| Weight |
≈147g(without cable) |
| Dimension |
L161mm * W63mm * H80mm |
| Communication Mode |
USB(USB-KBW,USB-COM),RS232 |
| Interface Type |
USB, RS232 |
| Power Supply |
DC 5V@80mA(work) |
| Operating temperature |
-20ºC to 50ºC |
| Storage temperature |
-40ºC to 70ºC |
| Humidity |
5% to 95%(non-condensing) |
| Drop Height |
1.5m |
| Temp. Test |
30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.: 60ºC
Low Temp.: -20ºC
|
| Transport vibration Test |
10H@125RPM |
Key Features
- Ergonomic design for comfortable use
- Reads all mainstream 1D barcodes easily
- High-performance processor with fast decoding (3mil)
- Supports multiple languages and systems
- Interfaces: USB, RS232
- Ideal for supermarkets, warehouses, mobile payment, and chain stores
Detailed Photos
Company Profile
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We have a professional QC team and testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.
Q2: How do you perform quality control?
We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.
Q3: What is the warranty period for the barcode scanner?
12 months warranty.
Q4: How do you ensure stable performance?
We use flow line production throughout the process. Every product is tested at least 4 times before delivery.
Q5: Do you provide OEM or ODM services for barcode scanners?
We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.
Q6: What are your company's strengths?
As a professional scanner manufacturer, we have specialized departments: R&D for new product development, production for manufacturing and testing, and marketing/sales with dedicated customer service.
Q7: Do I need to install drivers?
No. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
