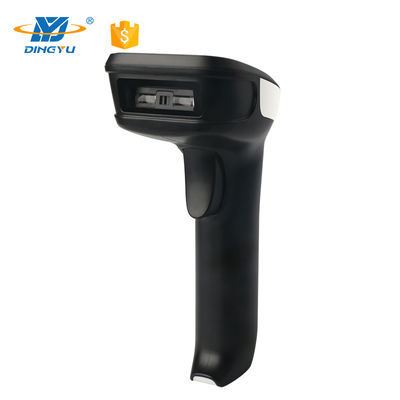

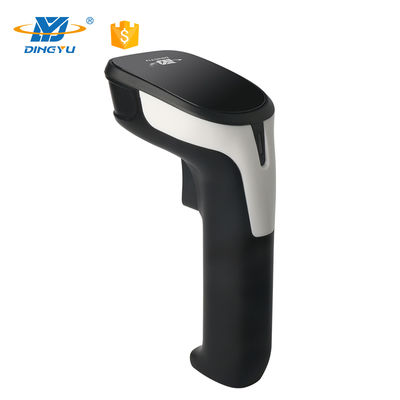

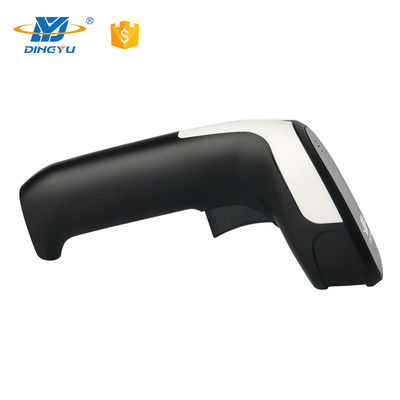

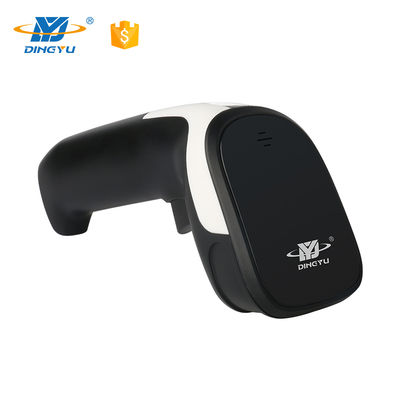

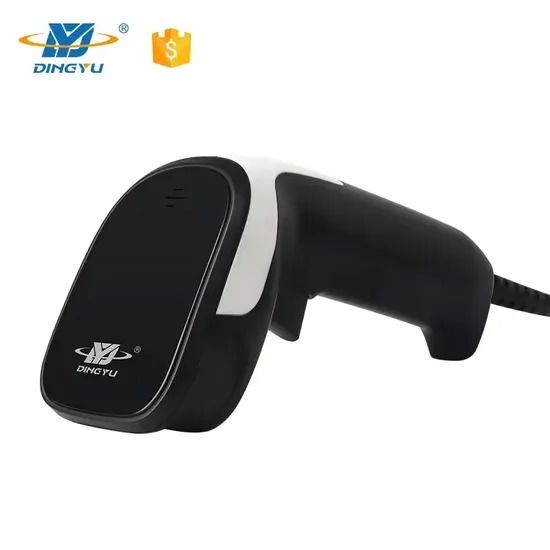

Name: DS5110 1D CCD Barcode Scanner USB 3mil Resolution 147g
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

خانه محصولات اسکنر بارکد 1D

DS5110 1D CCD Barcode Scanner USB 3mil Resolution 147g

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	10

مخاطب

توضیحات محصول جزئیات

مدل شماره.:	DS5110	نوع رابط:	USB، RS232
عنصر اسکن:	CCD	وضوح دوربین:	640*480
وضوح بارکد:	3mil کد 39	عمق میدان:	10-600 میلی متر
حالت های اسکن:	دستی ، مداوم ، اسکن خودکار ، چشمک زن	CPU:	32 بیتی
طول کابل:	1.5 متر	وزن:	147 گرم
منبع تغذیه:	DC 5V 80mA	دمای عملیاتی:	-20 تا 50 درجه سانتی گراد
دمای ذخیره سازی:	-40 تا 70 درجه سانتی گراد	ابعاد:	L161mm * W63mm * H80mm
سرعت رمزگشایی:	300 بار در ثانیه
برجسته کردن:	1D CCD barcode scanner USB,lightweight barcode scanner 147g,high resolution barcode scanner 3mil , lightweight barcode scanner 147g , high resolution barcode scanner 3mil

1D CCD Barcode Code39 Wired Handheld POS Terminal Barcode Scanner

The DS5110 is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for professional use, it efficiently reads barcodes from various surfaces including paper, products, and digital screens.

Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset management.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity Range	5% to 95% (non-condensing)
Drop Resistance	1.5 meters
