DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec

DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec

  • DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
  • DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
  • DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
  • DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
  • DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
  • DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
جزئیات محصول:
پرداخت:
مقدار حداقل تعداد سفارش: 1
مخاطب
توضیحات محصول جزئیات
مدل شماره.: DS6530-1D نوع رابط: USB
سرعت اسکن: 300 اسکن در ثانیه عنصر اسکن: CMOS
وضوح: 2500 وضوح حداقل: ≥3mil/0.076mm
عمق میدان: 30 میلی متر 700 میلی متر سرعت رمزگشایی: 300 بار در ثانیه
زاویه اسکن: رول: 30 ° ° ، زمین: 60 ° ° ، skew: 60 ° وزن: 230 گرم
ابعاد: 152mm * 66mm * 95mm منبع تغذیه: DC 5V@80mA
دمای عملیاتی: -20 درجه سانتیگراد تا 50 درجه سانتیگراد دمای ذخیره سازی: -40 درجه سانتیگراد تا 60 درجه سانتیگراد
رطوبت: 5% تا 95%
برجسته کردن:

USB 1D barcode scanner,high-speed barcode scanner 300 scans/sec,DYscan DS6530-1D barcode scanner

,

high-speed barcode scanner 300 scans/sec

,

DYscan DS6530-1D barcode scanner

DS6530-1D High-Performance 1D Barcode Scanner
The DS6530-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliability and efficiency, it accurately reads barcodes from paper, products, screens, and other surfaces across diverse industrial and commercial applications.
Key Features
  • Ergonomic design for comfortable extended use
  • Reads all mainstream 1D barcodes with exceptional accuracy
  • High-speed processor enables rapid decoding (4mil resolution)
  • Multi-language and system compatibility
  • Dual interface support: USB and RS232
  • Ideal for supermarkets, warehouses, mobile payments, and chain stores
Technical Specifications
Performance
Communication USB
Scan Type Linear CCD Sensor
Resolution 2500
Minimum Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field 30mm~700mm
Decoding Speed 300 times/second
Scan Modes Manual, continuous, auto-sense, flashing
Prompt Methods Buzzer, LED, vibration
Scan Angle Roll: ±30°, Pitch: ±60°, Skew: ±60°
Supported Symbologies UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Parameters
Weight Approximately 230g (scanner only)
Dimensions 152mm (L) × 66mm (W) × 95mm (H)
Communication Modes USB, RS232
Interface Type USB, DB9
Power Supply DC 5V@80mA (operational)
Environmental Specifications
Operating Temperature -20°C to 50°C
Storage Temperature -40°C to 60°C
Humidity 5% to 95% (non-condensing)
Transport Vibration Test 10H@125RPM
Included Accessories
Cables

USB Cable - for connecting to host devices

RS232 Cable - with USB power supply for host connection

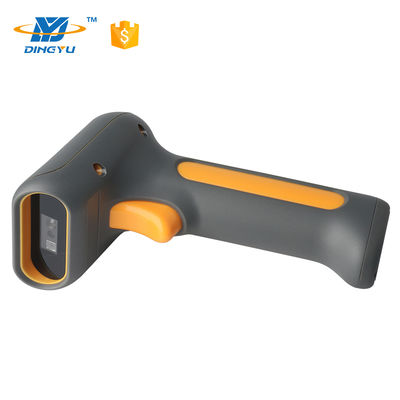

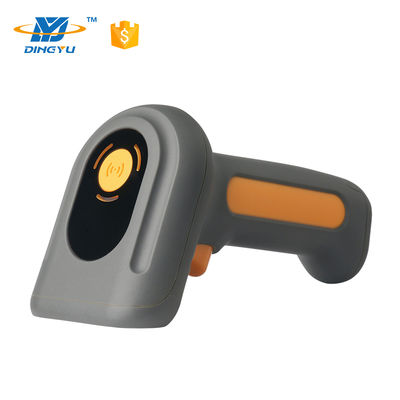

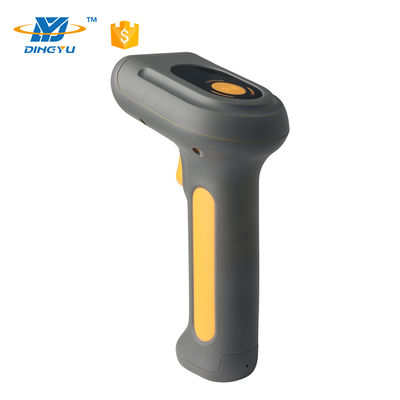

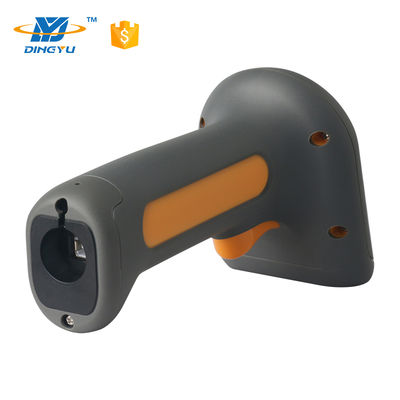

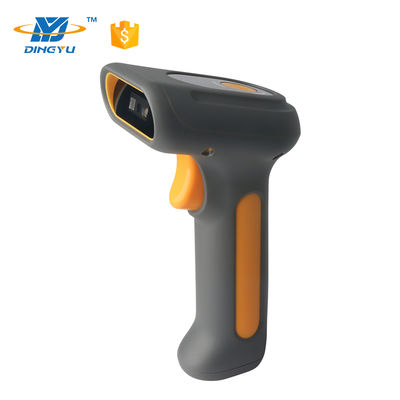

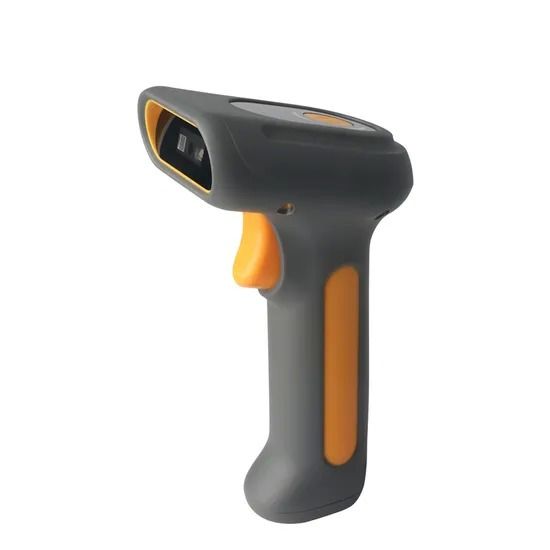

Product Images
DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 0 DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 1 DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 2 DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 3 DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 4 DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 5 DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 6 DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec 7
Frequently Asked Questions
How do you ensure the high quality of your barcode scanners?
As a professional manufacturer with 18 years of experience, we maintain strict quality control with dedicated testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.
What is your quality control process?
We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes comprehensive testing before shipment.
What is the warranty period?
We provide a 12-month warranty for all our barcode scanners.
How do you maintain stable performance?
Our assembly line production process ensures consistency, with each product tested at least 4 times before delivery.
Do you offer OEM/ODM services?
We provide complete OEM services including custom branding, packaging, and documentation. Our technical team supports ODM development for specialized requirements.
What are your company's strengths?
We operate specialized departments for R&D, production, and sales/marketing, ensuring professional management of each product lifecycle stage.
Is driver installation required?
No drivers are needed - our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
