Name: DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

خانه محصولات اسکنر بارکد 1D

DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1

مخاطب

توضیحات محصول جزئیات

نوع رابط:	USB	سرعت اسکن:	300 اسکن در ثانیه
عنصر اسکن:	CMOS	ابعاد:	L150mm * W70mm * H95mm
وزن:	≈110g (بدون کابل)	طول کابل:	1.8 متر
حالت ارتباطی:	USB، RS232	منبع تغذیه:	DC 5V@120MA (کار) ، 36mA (آماده به کار)
منبع نور:	چراغ قرمز قابل مشاهده ، 10 نانومتر 625	CPU:	32 بیتی
وضوح:	2500	دقت خواندن:	≥3mil/0.076mm (PCS90 ٪ ، کد 39)
عمق میدان:	45mm ~ 350mm	دمای عملیاتی:	-20 درجه سانتیگراد تا 50 درجه سانتیگراد
دمای ذخیره سازی:	-40 درجه سانتیگراد تا 60 درجه سانتیگراد
برجسته کردن:	1D barcode scanner USB handheld,CMOS barcode scanner 300 scans/sec,DYscan 1D barcode reader with warranty , CMOS barcode scanner 300 scans/sec , DYscan 1D barcode reader with warranty

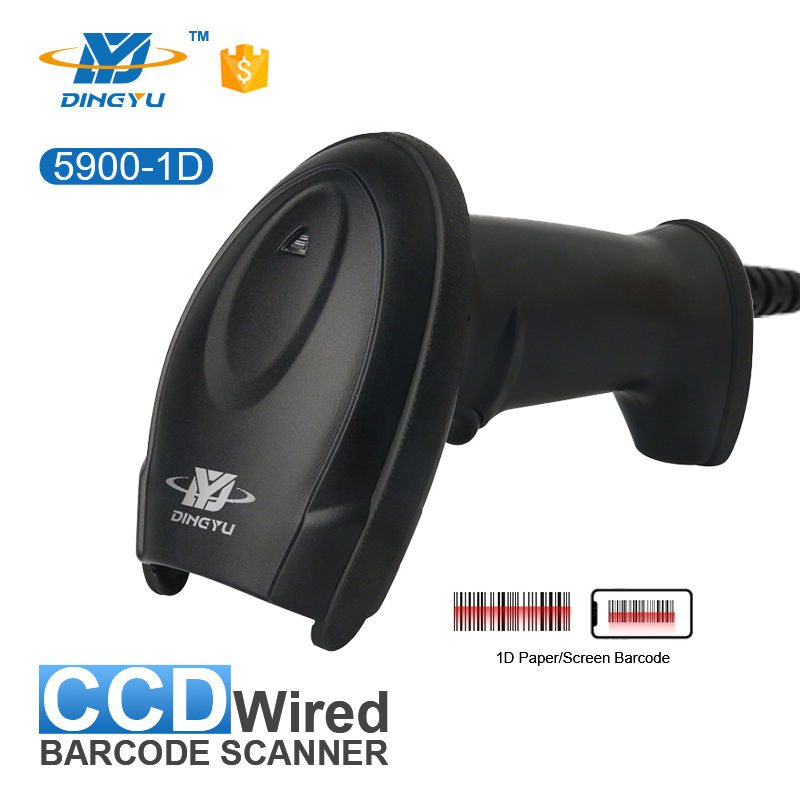

DS5900-1D High-Performance 1D Barcode Scanner

The DS5900-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliability and efficiency, it effortlessly reads barcodes from various surfaces including paper, products, and digital screens. Ideal for manufacturing, warehousing, logistics, healthcare, retail, and inventory management applications.

Key Features

Ergonomic design for comfortable extended use
Compatible with all mainstream 1D barcode formats
High-speed decoding with 32-bit processor (3mil resolution)
Multi-language and system support
USB interface for universal connectivity

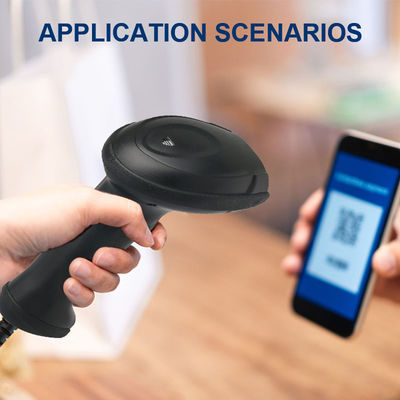

Versatile applications in supermarkets, warehouses, and mobile payment systems

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	300 times/second
Depth of Field	45mm~350mm
Scan Modes	Manual, Continuous, Flashing, Auto Sense, Command Control

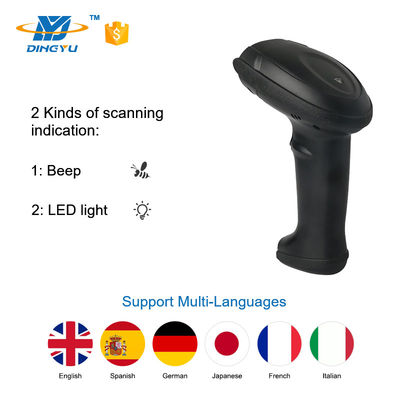

Prompt Method	Buzzer, LED
Scan Angle	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, and 20+ other formats

Physical Parameters

Weight	≈110g (without cable)
Dimensions	150mm × 70mm × 95mm
Cable Length	1.8M
Communication Modes	USB, RS232
Power Supply	DC 5V@120mA (Work), 36mA (Standby)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)

Included Accessories

USB Cable for device connection
RS232 Cable with USB power supply

Product Images

Frequently Asked Questions

How do you ensure the quality of your barcode scanners?

As a professional manufacturer with 18 years of experience, we maintain strict quality control with dedicated testing equipment including engine age tests, wire bend machines, and switch life tests. All products are CE, FCC, and ROHS certified.

What is your quality control process?

We conduct rigorous testing including 1 million wire bend tests and button durability tests. Every device undergoes multiple inspections before shipment.

What is the warranty period?

We provide a 12-month warranty for all our barcode scanners.

Do I need to install drivers?

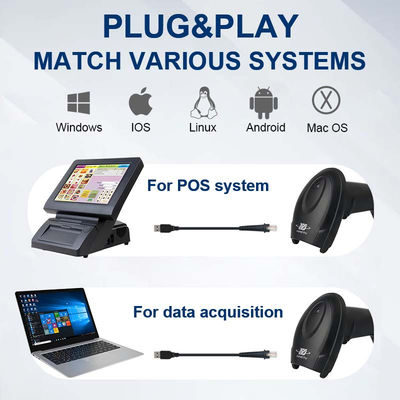

No drivers are required. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
