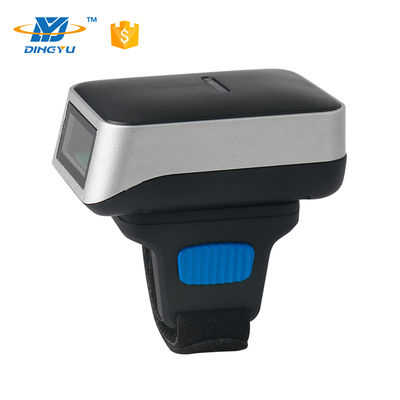

Name: DYscan DI9010C-2D Wireless Bluetooth Barcode Scanner Finger Wearable
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

خانه محصولات بارکد بیسیم اسکنر

DYscan DI9010C-2D Wireless Bluetooth Barcode Scanner Finger Wearable

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1

مخاطب

توضیحات محصول جزئیات

شماره شماره:	DI9010C-2D	نوع رابط:	USB، نوع C
سرعت اسکن:	300 اسکن در ثانیه	عنصر اسکن:	CMOS
وضوح:	640*480	نسبت وضوح:	4mil/0.1mm
سرعت رمزگشایی:	35 سانتی متر بر ثانیه	عمق میدان:	35mm 300 میلی متر
فاصله بی سیم:	30 متر	ظرفیت باتری:	450 میلی آمپر ساعت
زمان کار:	1.5 ساعت	وزن:	35 گرم
ابعاد:	L52.0mm * W35.0mm * H45.4mm	دمای عملیاتی:	-20 درجه سانتیگراد تا 55 درجه سانتیگراد
دمای ذخیره سازی:	-20 درجه سانتیگراد تا 60 درجه سانتیگراد
برجسته کردن:	wireless Bluetooth barcode scanner,finger wearable barcode scanner,DYscan DI9010C-2D scanner , finger wearable barcode scanner , DYscan DI9010C-2D scanner

2D QR Mini Finger Wearable Barcode Reader Wireless Bluetooth Barcode Quick Reader

Product Attributes

Attribute	Value
Model NO.	DI9010C-2D
Interface Type	USB
Scan Speed	300 scans/sec
Scan Element Type	CMOS
Scanning Mode	Auto Sense, Trigger, Continuous
CPU	32-Bit
Resolution	640*480
Resolution Ratio	4mil/0.1mm
Decoding Speed	35cm/S
Depth of Field	35mm~300mm
Scan Mode	Manual, Auto Sense, Continuous
Prompt Method	LED, Buzzer, Vibration
Print Contrast Signal	25%
Ambient Light	Dark Environment, Indoor Natural Light
Wireless Communication Mode	Synchronization, Storage
Storage	350kb
Battery Capacity	450mAh
Battery Charging Time	About 1 Hours(5V@1000mA)
Continuous Working Time	1.5h
Transport Package	Brown Carton
Specification	12010440mm/box
Trademark	DYscan
Origin	China
HS Code	8471900090

Product Description

The DI9010C-2D is a high-performance 2D Bluetooth barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, inventory management, and asset tracking applications.

Key Features

Ergonomic wearable design for warehouse and delivery applications
Reads all mainstream 1D and 2D barcodes (4mil resolution)
100,000 data storage capacity
Bluetooth 4.2 with intelligent auto-reconnection
Multiple connectivity options: Bluetooth (HID, SPP, BLE), wired
Compatible with PC and mobile devices

Technical Specifications

Performance

Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
Field of View	Horizontal 45° × Vertical 34°
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Wireless Transmission Distance	30m (open space)
Supported Systems	Windows, Mac OS, iOS, Linux, Unix, Android

Physical Parameters

Weight	≈35g (without cable)
Dimensions	52.0mm × 35.0mm × 45.4mm
Interface Type	Type C
Power Supply	DC5V, 250mA (Average Work)

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m

Supported Symbologies

1D Barcodes	Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D Barcodes	PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

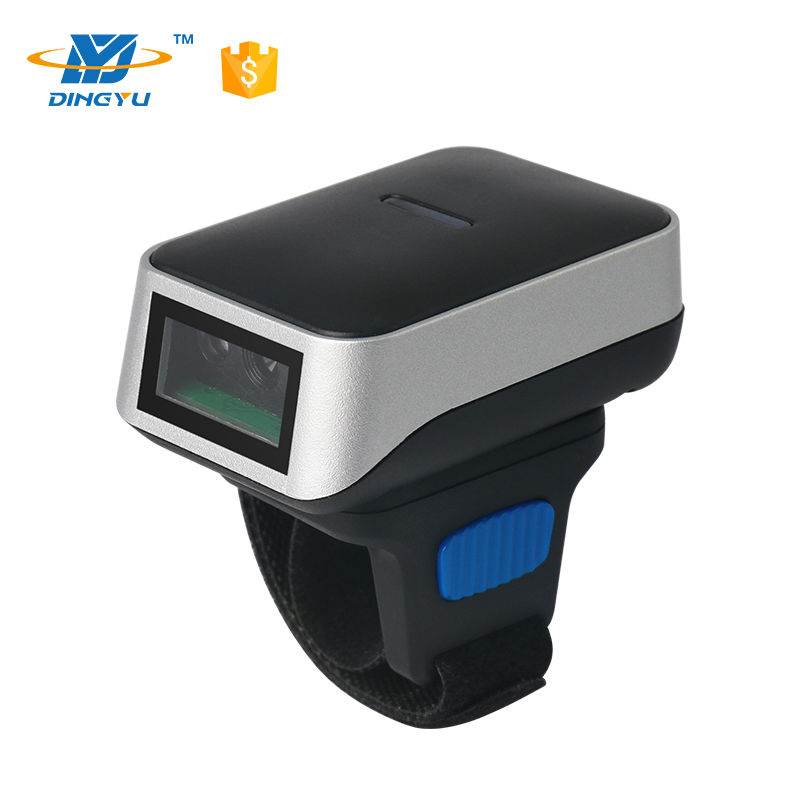

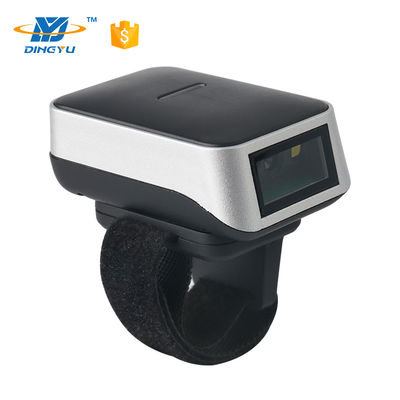

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: As professional manufacturers with 18 years of experience, we maintain rigorous quality control including engine age tests, wire bend tests (1 million cycles), and switch life tests. All products are CE, FCC, and ROHS certified.

Q2: What is your warranty policy?

DYscan: We offer a 12-month warranty on all barcode scanners.

Q3: Do I need to install drivers?

DYscan: No drivers required. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.

Q4: Can you provide OEM/ODM services?

DYscan: Yes, we offer comprehensive OEM services including custom branding and packaging. Our technical team supports ODM development projects.
