Name: Wearable Bluetooth 2D Barcode Scanner DI9010-2D for Logistics
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

خانه محصولات بارکد بیسیم اسکنر

Wearable Bluetooth 2D Barcode Scanner DI9010-2D for Logistics

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1

مخاطب

توضیحات محصول جزئیات

شماره شماره:	DI9010-2D	نوع رابط:	2.4 گرم بلوتوث
سرعت اسکن:	300 اسکن در ثانیه	عنصر اسکن:	CMOS
CPU:	32 بیت	زمان راه اندازی:	750 میلی‌ثانیه
وضوح:	3 مایل	عمق میدان:	55-350 میلی متر
حالت اسکن:	حالت ماشینی حالت حس	تحمل حرکت:	25 سانتی متر بر ثانیه
کنتراست چاپ:	25 ٪ رایانه شخصی	نور محیط:	70000 لوکس
وزن:	35 گرم بدون کابل	ظرفیت باتری:	350 میلی آمپر ساعت
زمان شارژ باتری:	حدود 1.5 ساعت
برجسته کردن:	wearable Bluetooth barcode scanner,2D barcode scanner for logistics,wireless Bluetooth barcode scanner , 2D barcode scanner for logistics , wireless Bluetooth barcode scanner

Wearable 2D Barcode Reader Portable Bluetooth Android Barcode Scanner

Product Specifications

Model NO.	DI9010-2D
Interface Type	2.4G Bluetooth
Scan Speed	300 scans/sec
Scan Element Type	CMOS
CPU	32bit
Startup Time	750ms
Resolution	3mil
Depth of Field	55-350mm
Scan Mode	Trigger Mode, Auto Sense Mode
Prompting Mode	LED Indicating Lamp, Buzzer
Motion Tolerance	25cm/S
Print Contrast	25%PCS
Ambient Light	70000lux
Weight	35g (Without Cable)
Charging Cable	Type C
Battery Capacity	350mAh
Battery Charging Time	About 1.5 Hours
Continuous Working Time	3 hours
Transport Package	120×104×40mm
Specification	120×104×40mm
Trademark	DYscan
Origin	China

Product Description

The DI9010-2D is a high-performance 2D Bluetooth barcode scanner featuring advanced CMOS image recognition technology. This wearable ring scanner efficiently reads barcodes from paper, goods, screens, and other media surfaces.

Applications: Manufacturing, warehouse management, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Technical Parameters

Light Source	Lighting: White LED (Automatically adjusts brightness) Aiming: Green LED (525nm wavelength)
CMOS	640×480 CMOS
CPU	ARM 32-bit
Resolution	1D: ≥3mil, 2D: ≥8.7mil @PCS90%
Reading Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Visual Angle	Horizontal 40° × Vertical 30°

Supported Symbologies

1D Codes: Codabar, Code39, Code32, ITF25, Industrial 25, Matrix 25, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, MSI, Febraban
2D Codes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

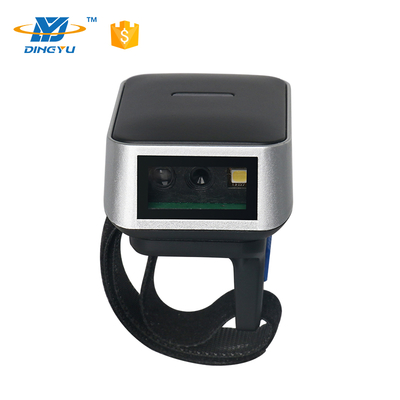

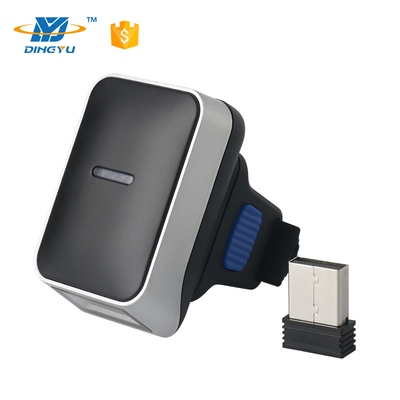

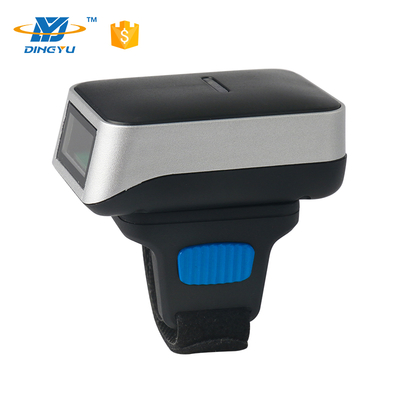

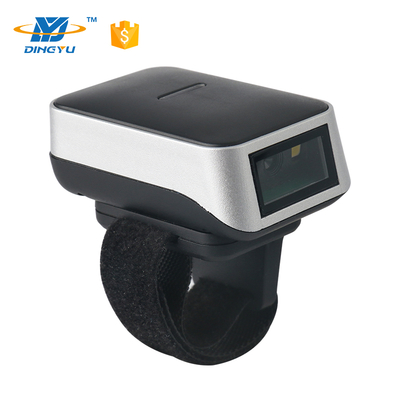

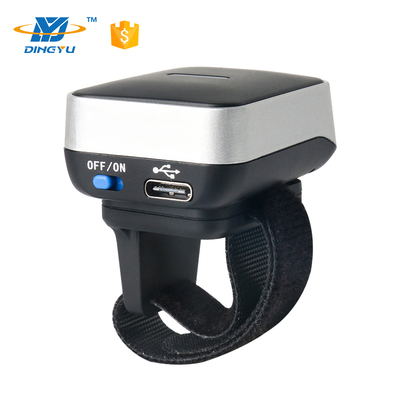

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience. Our products undergo rigorous testing (engine age test, wire bend test, switch life test, shock resistance test) and are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

We conduct 1 million wire bend tests and button tests. All devices are thoroughly tested before shipment.

Q3: What is the warranty period?

12 months warranty.

Q4: How do you maintain stable performance?

We use assembly line production with at least 4 quality checks before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services (custom logos, packaging) and ODM support with our technical team.

Q6: What are your company strengths?

We have specialized departments for R&D, production, and sales/marketing, ensuring comprehensive product development and support.

Q7: Are drivers required?

No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
