Name: Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

خانه محصولات بارکد بیسیم اسکنر

Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800

جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	15

مخاطب

توضیحات محصول جزئیات

سرعت اسکن:	65 سانتی متر بر ثانیه	عنصر اسکن:	CMOS
وضوح دوربین:	1280*800	دقت خواندن:	≥3mil/0.076mm
عمق میدان:	30-500 میلی متر	کنتراست چاپ:	20 ٪
CPU:	32 بیتی	ظرفیت باتری:	1200 میلی آمپر ساعت
زمان کار مداوم:	12 ساعت	زمان شارژ:	3.5 ساعت
فاصله بی سیم:	بلوتوث 30 متر ، 2.4 گرم 100 متر	ظرفیت ذخیره سازی:	350kb (20،000 بارکد)
وزن:	70 گرم	ابعاد:	L130mm * W46.5mm * H28.5mm
دمای عملیاتی:	-20 درجه سانتیگراد تا 55 درجه سانتیگراد
برجسته کردن:	Wireless Bluetooth barcode scanner,1D 2D QR barcode scanner,CMOS wireless barcode scanner , 1D 2D QR barcode scanner , CMOS wireless barcode scanner

Portable High Performance Wireless Bluetooth Barcode Scanner Mini 1D 2D Barcode Scanner

Product Specifications

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Wireless 2.4G Bluetooth
Scan Speed	65cm/S
Scan Element Type	CMOS
Camera	1280*800
Resolution	3mil Code39
Depth of Field	30-500mm
Scan Mode	Manual, Continuous, Auto Scan, Flashing
Print Contrast Signal	20%
CPU	32 Bit
Battery	1200mAh
Continuous Working Time	12h
Charging Time	3.5h
Storage	350kb (Over 20,000 Barcodes)
Dimensions	L130mm * W46.5mm * H28.5mm
Weight	≈70g (without cable)

Key Features

High-performance 1D/2D barcode scanning with CMOS technology
Dual wireless connectivity: Bluetooth (30m) and 2.4G (100m open distance)
Fast scanning at 65cm/s with 3mil resolution
Wide scanning angle (±360° roll, ±60° pitch, ±70° yaw)
Long battery life: 12 hours continuous operation
Rugged design with 1.5m drop resistance
Supports wide range of barcode symbologies including QR codes, PDF417, Data Matrix
Compact and lightweight (130×46.5×28.5mm, 70g)

Technical Parameters

Light Source: White LED (auto-adjust brightness) + Red LED aiming (525nm)

Operating Temperature: -20ºC to 55ºC

Storage Temperature: -20ºC to 60ºC

Humidity Resistance: 5% to 95% (non-condensing)

Interface: Type C

Power Supply: DC5V (47mA standby, 200mA average)

Supported Barcode Types

1D Codes: Codabar, Code39, Code128, UPC, EAN, GS1 Databar, MSI, and more

2D Codes: PDF417, QR Code, Data Matrix, Aztec, Micro QR

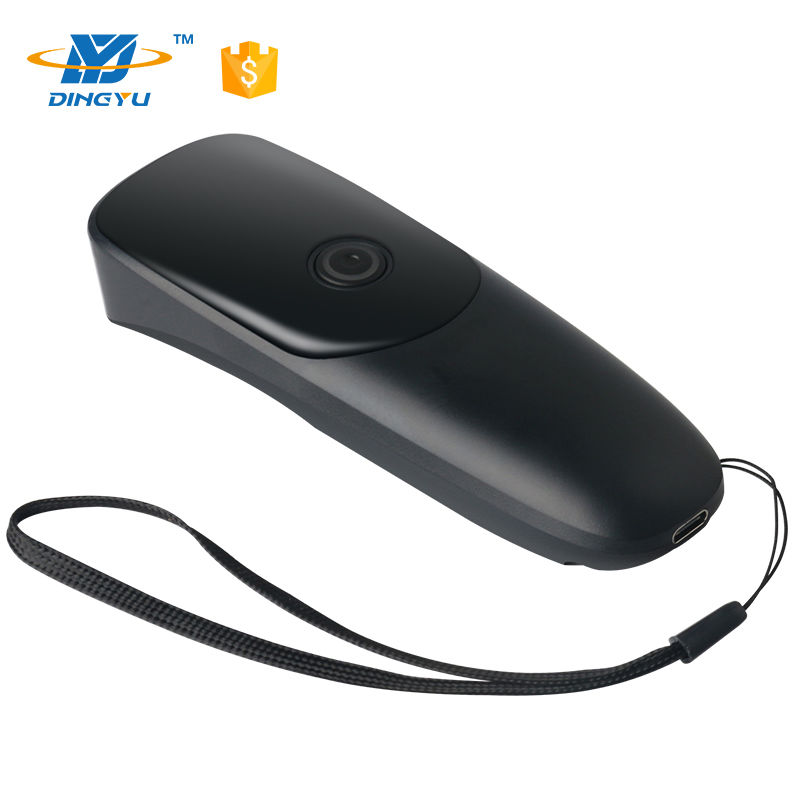

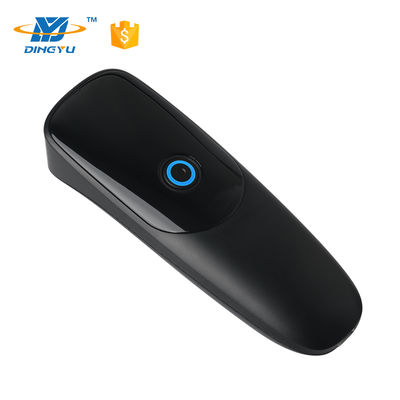

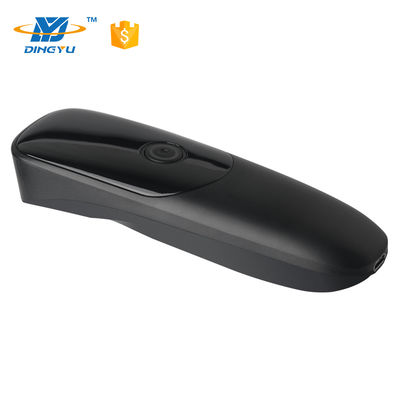

Product Images
